Product Details
＋

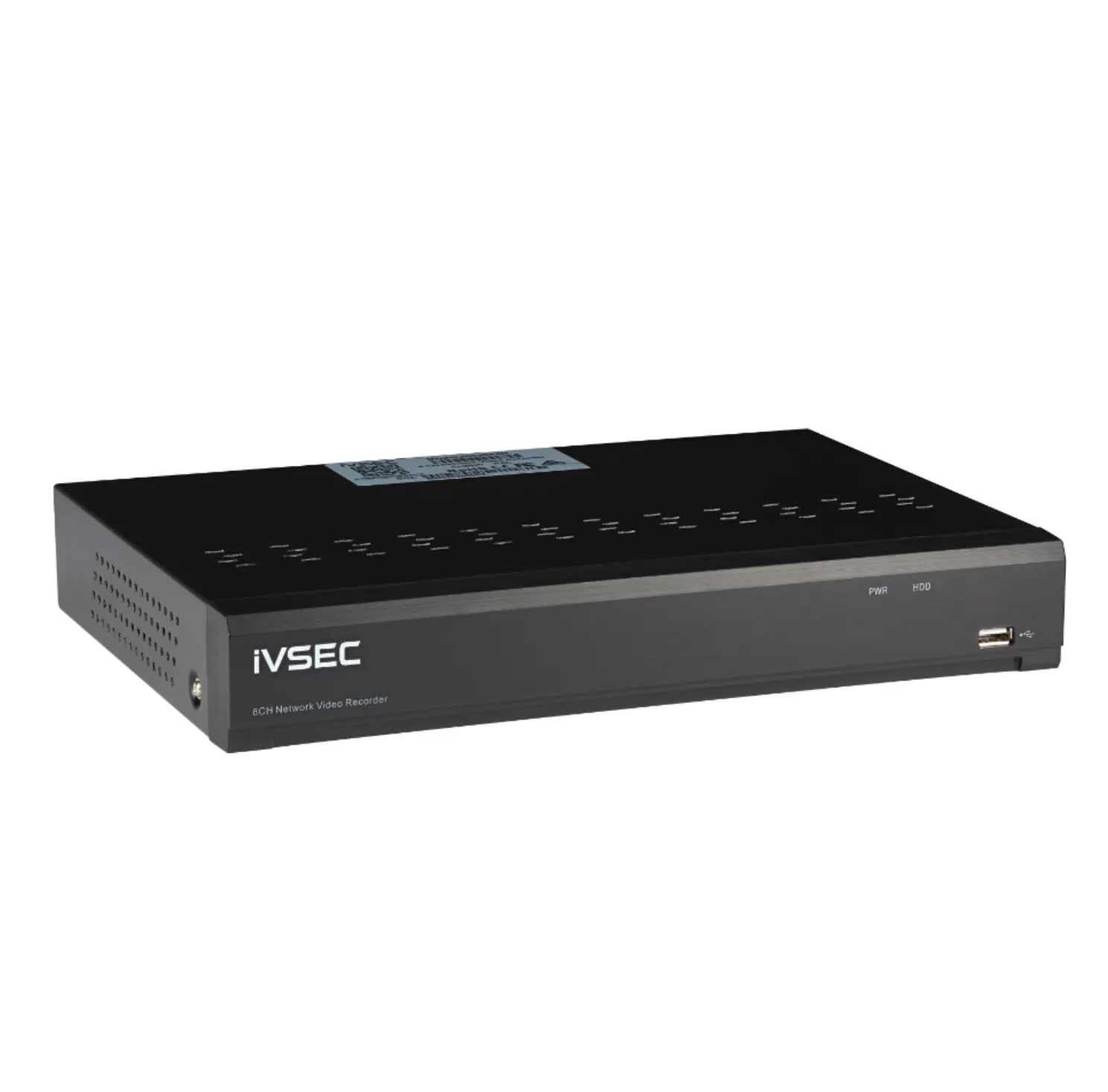

IVSEC 8 Channel NVR POE, Network Video Recorder (DVR) For IP Cameras and Home Security. With 2TB HDD installed.
Why IVSEC?
IVSEC is an Australian brand offering high-quality video surveillance equipment at affordable prices.
The IVSEC range of IP cameras is characterised by their ease of installation, intuitive settings, quality of finish, and Australian support.
All IVSEC X Range Network Video Recorders (NVRS) feature
- Easy to use Search Methods
- ONVIF Profile S/G/T for ease of IP cameras compatibility on 3rd party recording systems
- ONVIF Powerful H.264, H.265 Compression to save on hard drive storage
- Remote Control Plug and Play with IVSEC X range
- Cameras search by date/time range, and filter by analytics: PIR detection, IVS, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Line Cross Counting, Human and vehicle tracking *Analytics/IVS is camera dependant
- Remotely control NVRs and cameras using the free Video Management System (VMS) for PCs, Internet browsers, and powerful mobile applications
| Maximum Channels | 8 |
| Maximum Video Resolution (Megapixels) | 8MP |
| Examples of Channels at a resolution with FPS | 80 Mbps |
| Video Compression | H.264, H.265 |
| Video Output Resolution | 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display | 1, 4, 6, 8, 9 |
| Search Method | Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) | 14 |
| HDD Bays, Size | Bays x 1, Up to 14TB per HDD |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols | TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language | English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc. |
| Audio Streaming | Out |
| Power Over Ethernet Switch Ports | 8 up to 802.3at(30w) |
| Power Over Ethernet | Yes |
| Power Supply | DC48V/1.5A |
| Power Consumption | 8W （Without HDD） |

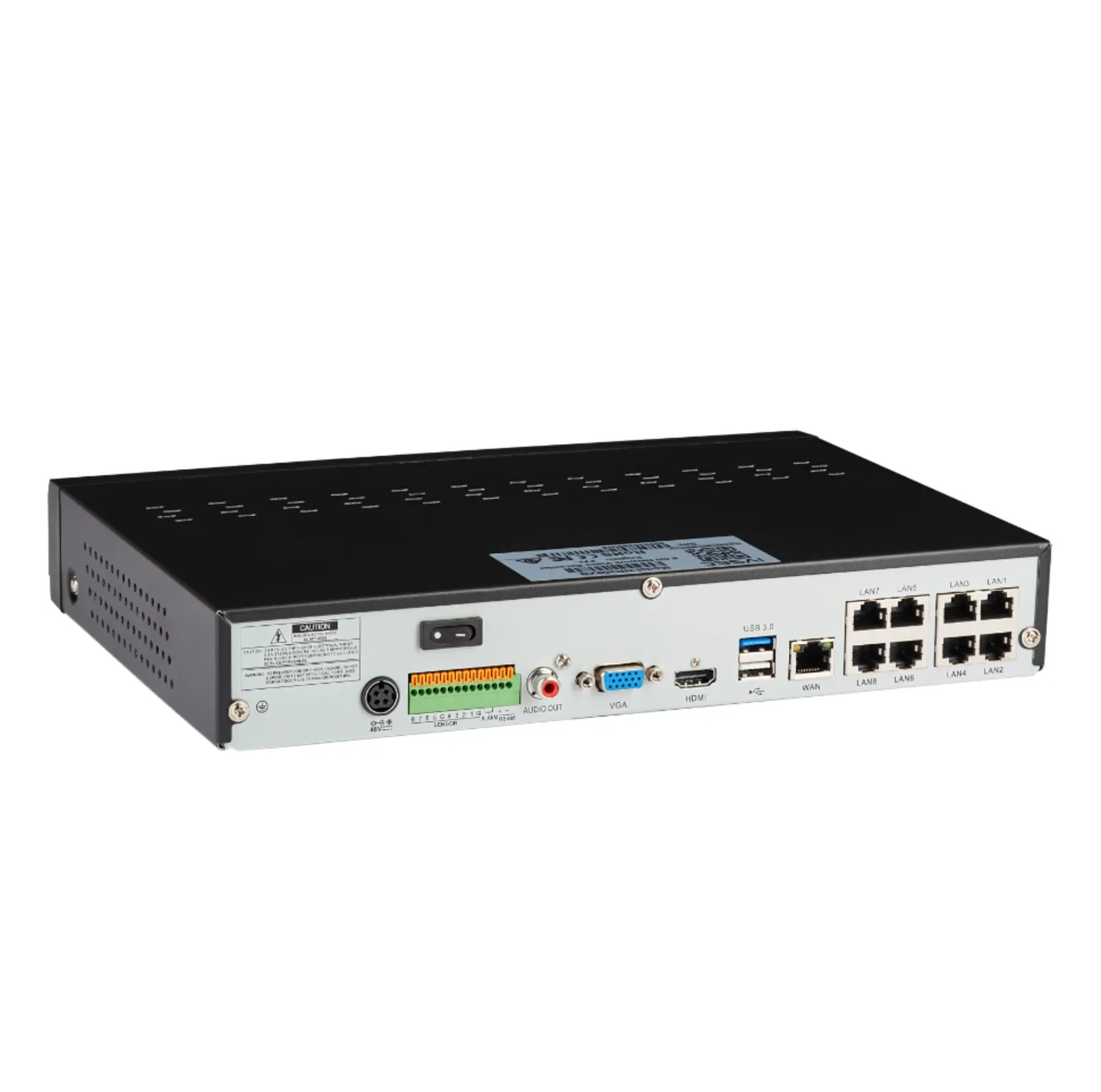

| Connectors | HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE ports, HDMI, Audio in, Power Jack input, On off switch |
| Operating Environment | 5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box | Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty | 12 months |
| Dimensions | 300 x 227 x 53 mm |
| Weight (kg) | 1 kg |
